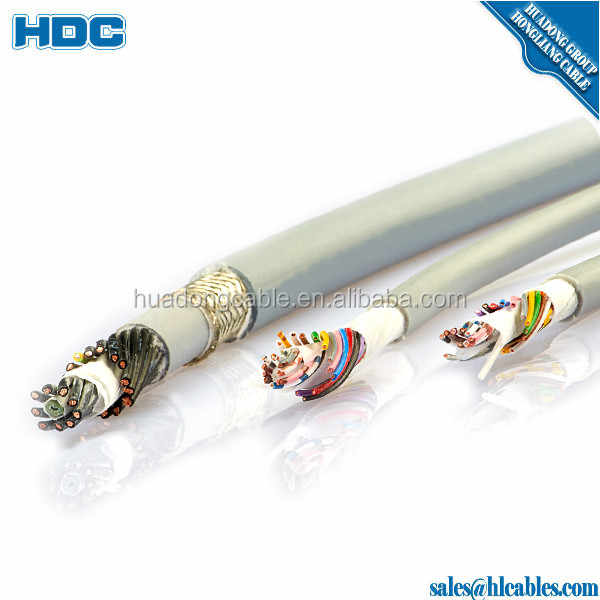

cable instrument Fire resistant cable IEC 60331-21 300/500V LSHF grey PE PVC sheath 1.5 2.5 CU/XLPE/IS/OS/SWA/PVC

FOB Reference Price:Get Latest Price
$0.10 - $3.60 / Meter | 500 Meter/Meters (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Huadong control cable.
Model Number:
instrument cable
Application:
telecommunication
Conductor Material:
Copper
Jacket:
PVC
Insulation Material:
PVC
color:
all kinds of color is available.
core:
multi-core pairs
sectionla area:
0.75 mm2 - 10 mm2
application:
for the remote
Item name:
flexible computer communication cable
sample:
free
voltage:
low voltage
sectional area:
10mm2
Supply Ability
Supply Ability:
85000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
cable instrument Fire resistant cable IEC 60331-21 300/500V LSHF grey PE PVC sheath 1.5 2.5 CU/XLPE/IS/OS/SWA/PVC packged in : length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
Port
Qingdao/Tianjin/Shanghai/Ningbo/Guangzhou
Lead Time :
7 days after received your deposit for control cable.

Product Description

Item name:cable instrument Fire resistant cable IEC 60331-21 300/500V LSHF grey PE PVC sheath 1.5 2.5 CU/XLPE/IS/OS/SWA/PVC





The cables are designed for fixed installation of control circuits on the nominal alternating voltage up to 380V of frequency up to 50 Hz or direct voltage up to 500V.

The cables are manufactured for general industrial use and nuclear power plants. The cables do not spread combustion at group installation. The cables are designed for use in cable structures and premises, including for objects which use nuclear power, in the systems of NPP of class 3 and 4

The climate modification B, categories of location 1 - 5 according to GOST 15150-69

Current-carrying conductor

Copper, multi-wire of circular form, of the 4 class according to GOST 22483, with the cross-sections from 0.35 and 0.5 mm2.

Thermal barrier

Taped with two mica tapes.

Insulation

PVC-compound of low fire hazard (color-coded or digital-coded conductor).

Screen

For KUGVeVng(A)-FRLS is made in the form of braiding with copper wires over the insulation of each conductor.

Core arrangement and twisting

Insulated (screened and not screened) conductors are twisted in a cable core in the form of concentric layers.

Winding

Lapping with PET-E films.

Screen over twisting

For cables of type KUGVVEng(A)-FRLS braiding with copper or copper galvanized wires.

Over sheath

PVC-compound of low fire hazard.





Packaging & Shipping

cable instrument Fire resistant cable IEC 60331-21 300/500V LSHF grey PE PVC sheath 1.5 2.5 CU/XLPE/IS/OS/SWA/PVC

1,100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.

Our Services

cable instrument Fire resistant cable IEC 60331-21 300/500V LSHF grey PE PVC sheath 1.5 2.5 CU/XLPE/IS/OS/SWA/PVC

1. We guarantee to offer new advanced goods.

2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction,installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing, If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.

3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.

4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.

Company Information

Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,and domestic& international trade.

Established year: 1988

Total asset: USD 32 million

Plant area: 30000 m2

Number of staff: 380

Engineer:20

Laboratory Inspector: 18

Production line: 18

Testing machine:25

Producing capacity each year: 320000 km.

cable instrument Fire resistant cable IEC 60331-21 300/500V LSHF grey PE PVC sheath 1.5 2.5 CU/XLPE/IS/OS/SWA/PVC  Standard:

Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.

Meanwhile we can produce based on customers' requirements and specifications.

cable instrument Fire resistant cable IEC 60331-21 300/500V LSHF grey PE PVC sheath 1.5 2.5 CU/XLPE/IS/OS/SWA/PVC  Certificate:

The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical

Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation

of Urban and Rural Power Grid Construction.

FAQ

1.what is our payment term ?

  Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

  The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

  The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

  Sure, we provide the free sample for customer to checking.
