Huadong cable 3 core 35mm aluminum 8mm power cable

FOB Reference Price:Get Latest Price
$1.00 - $10.00 / Meter | 500 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 1000 1001 - 200000 >200000
Est. Time(days) 7 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Huadong cable
Model Number:
Power cable
Insulation Material:
XLPE
Type:
Medium Voltage
Application:
CONSTRUCTION
Conductor Material:
Aluminium or Copper
Jacket:
PVC or PE
Brand name:
Huadong cable Medium Voltage (1-35kv) Power Cable
conductor material:
copper or Aluminum
high temperature:
90 °C
Delivery:
in short time
Provider:
factory
insulation:
XLPE
Standard:
GB12706,GB12666,IEC60502,IEC60331
Supply Ability
Supply Ability:
3500 Kilometer/Kilometers per Month for power cable
Packaging & Delivery
Packaging Details
xlpe Insulated multi cores copper conductor xlpe cables philippines electric cable and wire Packaging detail: Sea worthy or Air worthy packaging in Standard wooden drum,steel drum,others as your request.
Delivery time:About 5 to 10 working days to our sea port CHINA.
Port
Qingdao/Tianjin/Shanghai/Ningbo/Guangzhou or according to your needs
Lead Time :
Quantity(Meters) 1 - 1000 1001 - 200000 >200000
Est. Time(days) 7 15 To be negotiated
Video Description



Product Description







Usage Characteristics:

Minimum installation temperature: 0°C ;

Maximum installation temperature: +60°C;

Installation type: Outdoor – Direct burial;

Minimum operating temperature:-15°C Maximum operating temperature:90°C;

Short-circuit max. conductor temperature: 250°C;

Flame retardant: BS EN 60332

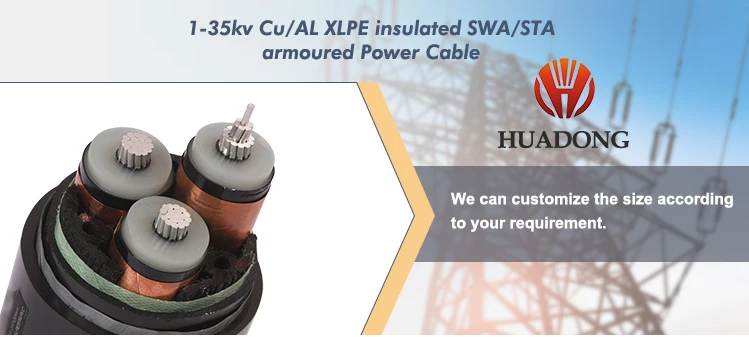

1-35kv Cu/AL XLPE insulated SWA/STA armoured Power Cable Parameter



Part Number



Cross Section

Stranding

Approx Weight

Approx Overall Diameter

Gland Size

Single Cleat

Nom. Max. DC-resist conductor 20° C

Current rating laid direct

(mm²)

(mm)

KG/KM

(mm)

(mm)



(Ohm/km)

(Amp)

11KVPVC3X16

3 x 16

7/1.70

3440

44.3

40

1.8

1.15

119

11KVPVC3X25

3 x 25

7/2.14

4060

48.5

50

2

0.727

152

11KVPVC3X35

3 x 35

7/2.52

4495

50.5

50

R9

0.524

181

11KVPVC3X50

3 x 50

19/1.78

5115

53

63s

R9

0.387

213

11KVPVC3X70

3 x 70

19/2.14

6035

56.8

63s

R10

0.268

260

11KVPVC3X95

3 x 95

19/2.52

7180

61.3

63

R10

0.193

309

11KVPVC3X120

3 x 120

37/2.03

8280

65.1

75s

R11

0.153

349

11KVPVC3X150

3 x 150

37/2.25

9325

66.8

75s

R11

0.124

390

11KVPVC3X185

3 x 185

37/2.52

10740

72.3

75

R12

0.0991

436

11KVPVC3X240

3 x 240

61/2.52

13820

79.3

90

R14

0.0754

499

11KVPVC3X300

3 x 300

61/2.85

16120

84.2

90

R15

0.0754

553

11KVPVC3X400

3 x 400

61/3.20

19350

92.4



R15

0.047

619



APPLICATIONS

• Predominantly used for primary underground distribution

• Suitable for use in wet or dry locations, direct burial, underground duct, and where exposed to sunlight

• To be used at 35,000 volts or less and at conductor temperatures not to exceed 90°C for normal operation





SPECIFICATIONS

35kV Primary UD Cable meets or exceeds the following ASTM specifications:

• B 230: Aluminum 1350-H19 Wire for Electrical Purposes

• B 231: Aluminum 1350 Conductors, Concentric-Lay-Stranded

• B 609: Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes



CONSTRUCTION

• The phase conductor is concentrically stranded, compressed soft copper or 1350-H16/26 aluminum alloy

• Cable is composed of the conductor with moisture block in the strands, covered by a semi-conducting cross-linked polyethylene strand shield, a tree-retardant cross-linked polyethylene primary insulation, and a semi-conducting cross-linked polyethylene insulation shield

• Conductors are available with either 100% or 133% insulation levels

• Concentric neutral of bare copper wires and an insulating polyethylene jacket is applied over the insulation shield

• Cable identified by surface print on the jacket and with the lightning bolt symbol for supply cables indented in the jacket

Our Services



Packaging & Shipping











Company Information







Henan Huadong Cable Co., Ltd. is a joint stock enterprise integrated in cable production, and domestic & international trade, founded in 2005, located in Xiuwu Industrial Zone, Jiaozuo and occupied 66,000 square meters, with advanced 20 sets equipments and 25 sets testing machines, annual production capacity is over 15 million kilometers.



Our collaborated cocompany is Henan Huadong Cable Co., Ltd. located in Zhengzhou city, which is well-known for convenient transportation.



We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced (ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-35kV power cables (including XLPE insulated cables, PVC insulated cables, SWA/STA a rmored cables), (XLPE/PVC insulated ABC cable), control cables, welding cables, rubber cables, mining cables and electrical wires (PVC sheathed flexible cable). These cables can be used for power transmission in air, underground and industry, such as power station, railway, agriculture, and estate. We strictly according to GB, IEC, BS, ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.



We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia, Oceania countries. We are adhering reliable quality and professional service to make our Huadong Cable be famous in domestic and oversea. Thanks for your supporting and trusting! Huadong Cables welcomes your inquiry and visiting, we are at your service !
